HDMI HDBaseT Over LAN Extender with USB

DISTRIBUTION AMPLIFIER
 HDMI HDBaseT Extender with USB 4K2K


EVBMU-M2010

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428
sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo

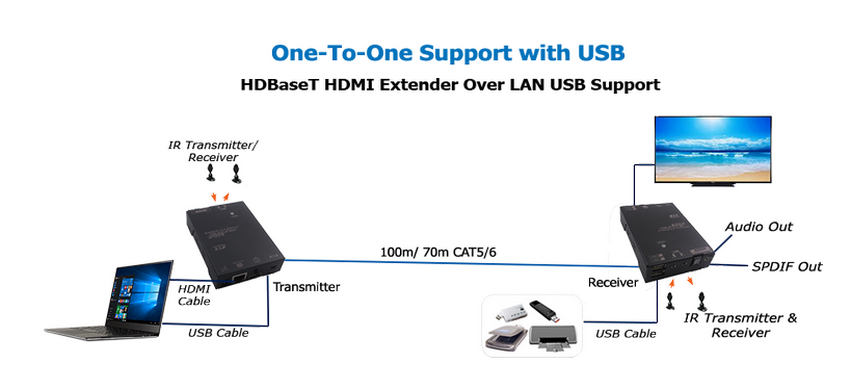

PRODUCT FEATURES DIAGRAM


HDMI HDBaseT EXTENDER

HDMI & USB / Audio Extender over CAT5e/6/7


EVBMU-M2010


RM 2,827.00
EVBMU-M2010 (2010L/R)
support up to 100m

RM 1,584.00
EVBMU-M107 (107L/R)
support up to 70m
MODELTRANSMITTER (TX)RECEIVER (RX)
EVBMU-M2010
EVBMU-2010L
EVBMU-2010R
EVBMU-M107
EVBMU-107L
EVBMU-107R
  INPUT PORTHDMI, Analog Stereo, S/PDIF1 x RJ45
  OUTPUT PORT
1 x RJ45
HDMI, Analog Stereo, S/PDIF
  LED (Link/ Video Status)1 x Multi-Color
  VIDEO RESOLUTION (max)4K2K UHD 3840 x 2160 @ 30Hz
  DISTANCE SUPPORT
70m (Full HD 1920 x 1080)
35m (4K2K UHD 3840 x 2160)
100m (Full HD 1920 x 1080)
70m (4K2K UHD 3840 x 2160)
  USB 2.0
1 x USB Host
4 x USB Device
  IR EXTENSION1 x IR Transceiver1 x IR Receiver
  POWER SUPPLY
DC 12V / Phantom Power-
single power supply usage on either TX or RX
      Use 24AWG solid cable without cascade. STP cabling is recommended for
     environment with high EMI or RFI for best performance results. Avoid using
      stranded, thinner and excess coiling cables.
