VGA SPLITTER & MATRIX SWITCHER

DISTRIBUTION AMPLIFIER
Call for more information 03-8069 1655/ 03-8069 1755/ 012-278 5731 sales@3wiredsys.com
VGA SPLITTER
2 Port VGA Splitter with Audio


VSVA-102    RM 220.00

Input: VGA/ Audio
Output: VGA/ Audio x 2
350MHz
4 Port VGA Splitter with Audio



VSVA-104   RM 524.00

Input: VGA/ Audio
Output: 4 x VGA/ Audio
350MHz
8 Port VGA Splitter with Audio



VSVA-108   RM 895.00

Input: VGA/ Audio
Output: VGA/ Audio x 8
300MHz
16 Port VGA Splitter with Audio



VSVA-116  RM 1,862.00

Input: VGA/ Audio
Output: VGA/ Audio x 16
300MHz
VGA Splitter Data Sheet
Duplicate one VGA+ Audio input to multiple VGA+Audio outputs
Support up to 1920 x 1440 resolution
Effective transmission distance: 65M (210ft)with UL-2919 rated VGA cables
Automatic power-save when VGA input is lost
Applicable to VGA, SVGA and multi-sync monitors
VGA cascadeable for maximizing the management capacity
Crisp clear VGA images

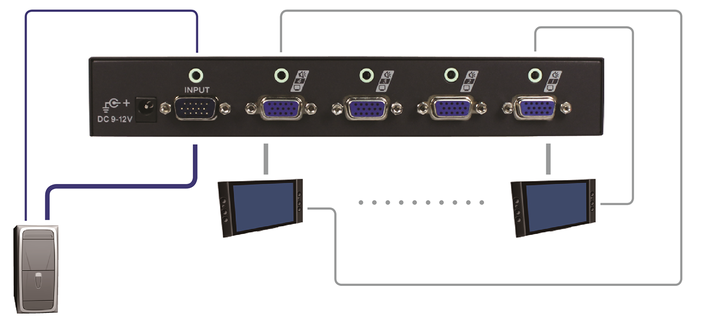

Video Splitters, VSVA model broadcast and boost one VGA signal source to 2, 4, 8 or 16 VGA monitors. There is no software or interface card to install. Simply connect the cables, power up the system and you are ready to duplicate VGA images to multiple monitors with excellent clarity. Superb high bandwidth circuit enables a high-resolution VGA signal of 350 MHz to be displayed on multiple monitors.

With the mountable size, VSVA model can be easily mounted on the rack for space saving and working efficiently.
VGA SWITCHER
2in- 1out VGA SWITCHER
VSA-ED201   RM 256.00
Basic Version
VSA-ED221   RM 402.00
Rotary Selection for Optimum Clarity

Input: VGA x 2
Output: VGA
Features: EDID Copy,  Auto signal detact features,  Priority port selection
4in-1out VGA SWITCHER with AUDIO



VSVA-401  RM 475.00

Input: VGA/ Audio X 4
Output: VGA/ Audio
Control: IR Remote Control
4 Port out 1in VGA SWITCHER
with AUDIO/ SERIAL CONTROL



VSVA-S401  RM 756.00

Input: VGA/ Audio x 4
Output: VGA/ Audio
Control: Serial Port, Remote Control
8 Port out 1in VGA SWITCHER with AUDIO/
SERIAL CONTROL



REX-VGA-SW801AS / VSVA-ED801   RM 1,133.00
Auto-sensing function

Input: VGA/ Audio x 8
Output: VGA/ Audio
Control: Serial Port, IR Remote Control
VGA Switcher

Video Switch is a simple and stable solution, allowing users quickly and easily sharing a varied type of interfaces (VGA / DVI / HDMI and DisplayPort), display devices (HDTV, Blu-ray player, HD-DVD, Xbox, Wii, PS3, Satellite receiver…etc.) from your device inputs to one output device (monitor, projector, or TV). You can select the desired input source via the remote control within the range of 5 meters or push button located on the switch. It totally removes the need to plug & unplug Video sources, making the user’s A/V equipments more convenient, more affordable and more efficient. Furthermore, the built-in serial interface allows users controlling the Video Switch through a PC, serial controller devices or home theater system integrating the whole A/V environment.

  • Select 1 Video (+ Audio) from 2 / 4 / 8 different Video (+ Audio) sources
  • Front panel buttons for easy switching
  • LED shows active status and makes operation user-friendly
  • Support video resolution up to UXGA (1600 x 1200) / Full HD (1920 x 1080) / WUXGA (1920 x 1200)
  • Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA system

EDID Functions
  • EDID functions effect simultaneously of all video sources
  • EDID Copy function makes the best video presentation
  • Read and store the EDID from the connecting display to the video extension
  • Provide a default EDID, if a display’s EDID is not available
  • Alternatively perform the default or the copied EDID for the connected display device
  • Emulating EDID information ensures the optimum video performance

EGO Functions for VSA-ED801 model
  • User-friendly port switching via button pressing or priority setting
  Priority: System will automatically select Source-1 to display
  (Priority: Source-1 > Source-2 > ……)
  Auto-sensing: System will automatically select the latest video source to display

VGA MATRIX SWITCHER
4 Port In/Out
VGA MATRIX SWITCHER with AUDIO/ SERIAL




XVA-404     RM 1,462.00

Input: VGA/ Audio x 4
Output: VGA/ Audio x 4
Control: Serial Port, IR Remote Control
4 Port In-8 Port Out
VGA MATRIX SWITCHER with AUDIO/ SERIAL




XVA-408     RM 2,682.00



Input: VGA/ Audio x 4
Output: VGA/ Audio x 8
Control: Serial Port, IR Remote Control
VGA  Matrix Switcher XVA-404/ XVA-408
The Video Matrix Switch acts as a video/ audio signal management system in presentation applications, which simplifies the process of signal routing. In addition, the user can remotely control the unit by using the remote controller within the range of 5~10 meters, and fully enjoy the control power without any cable connection.

Signals from a range of input sources can be distributed to various output devices, in essence of creating a "matrix" pattern of interconnection possibilities. A single computer video output AND audio output can be routed to one or more monitors and speakers. Each image will be as crisp and clear as if directly connected to the original source. Each video and audio output is buffered corresponding to each input, which ensures signal integrity throughout the system.

  • Route 4 different VGA and audio sources to 4/ 8 different displays and speakers
  • Support 1. Front panel button control  2. IR remote control   3. Serial control (depends on models)
  • Remotely control up to 5 meters by using the remote controller
  • Switch both video and audio directly
  • Turn ON/OFF each video/ audio output port individually
  • Distortion-free for multiple concurrent outputs
  • Activate Auto Scan by front panel push buttons
  • Selectable Scan Time interval
  • Buzzer beeps for switching confirmation
  • Exclusive remote controller with embedded functions to control up to 16 units
  • Auto scan is available
  • Each input can be independently connected to any one or all outputs
  • Support video bandwidth up to 300 MHz
  • Support the video resolution of 1920 x 1440
  • System settings are automatically retained, and reset to the previous settings after a power failure
  • Rack mountable




8 x 4 VGA MATRIX SWITCHER
with AUDIO/ SERIAL


XVA-G0804

XVA-G0804     RM 3,351.00

Input: VGA/ Audio x 8
Output: VGA/ Audio x 4
Control: Serial Port, IR Remote Control
GUI Interface

Rack Mount Accesories
8 x 8 VGA MATRIX SWITCHER
with AUDIO/ SERIAL


XVA-G0808

XVA-G0808    RM 4,874.00

Input: VGA/ Audio x 8
Output: VGA/ Audio x 8
Control: Serial Port, IR Remote Control
GUI Interface

Rack Mount Accesories
16 x 8 VGA MATRIX SWITCHER
with AUDIO/ SERIAL

XVA-G1608c

XVA-G1608    RM 7,554.00

Input: VGA/ Audio x 16
Output: VGA/ Audio x 8
Control: Serial Port, IR Remote Control
GUI Interface

Rack Mount Accesories
VGA  Matrix Switcher XVA-G0804/ XVA-G0808/ XVA-G1608
Video Matrix Switch MX series can route multiple VGA and audio sources to multiple VGA displays (projectors, monitors, and so on) and speakers. The Video Matrix Switch acts as a video/ audio signal management system in presentation applications, which simplifies the process of signal routing. In addition, the Graphical User Interface (GUI) feature provides users easier and more friendly operations and the user can remotely control the unit by using the remote controller within the range of 5~10 meters, and fully enjoy the control power without any cable connection.

Signals from a range of input sources can be distributed to various output devices, in essence of creating a "matrix" pattern of interconnection possibilities. A single computer video output AND audio output can be routed to one or more monitors and speakers. Each image will be as crisp and clear as if directly connected to the original source. Each video and audio output is buffered corresponding to each input, which ensures signal integrity throughout the system.

Powerful weekly schedule management
● Route 16 different VGA signals and audio sources to 8 different VGA monitors and speakers
● Support 1. Front panel button control   2. IR remote control  3. Serial control
● Activate auto scan by front panel buttons pressing
● Graphical User Interface (GUI) for easy and friendly operations
● Switch both video and audio directly
● Support to turn ON/OFF the video and audio of each individual output port
● Adjustable volume for each audio port
● Selectable Scan Time interval
● Buzzer sound for switching confirmation
● Support video cascading to increase the capacity
● Each output provides one video signal and one audio signal
● Each input can be independently connected to any or all outputs
● Support the video resolution of Full HD (1920 x 1080) / WUXGA (1920 x 1200) / 1920 x 1440
● Compatible with most of the popular screen resolution to 1080/60p, 1080/60i, 1080/24p, 720/60p, 480/60i...
● 1.5U-height form factor saves rack spaces
● Rack mountable
