MULTI SCREEN DISPLAY 16 SCREENS

DIGITAL SIGNAGE & SMART HOME > DIGITAL SIGNAGE

MULTI-SCREEN 8 OR 12 SCREENS OUTPUT

Multi Screen Digital Signage

Content Manager

1 Year Standard Warranty

Call or Email for Quote

03-8069 1655/ 03-8069 1755

012-278 5731

sales@3wiredsys.com

for

Consultation,

Technical enquiries,
Recommendation or Demo

MS2800S SPECIFICATION MODEL

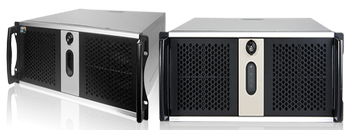

DT Research MS2800S Multi Display Screen

Intel Digital Signage

Intel® X-Series Core™ i9, 10 cores CPU

No subscription fees

Web Base Easy Designer

The DT Research MS2800N Multi Screen Appliance powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient 10-core Intel® X-Series Core™ i9 processor, the MS2800N provides up to 16 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager software, one MS2800N is capable of driving dynamic content on up to 16 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to several separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full-HD) resolution.

Drives up to 16 screens; Full-HD content supported on each screen
Support for multiple zones of content for each display wall
Content flexibility for image, flash and many multimedia file formats; stretched across multiple screens or played on a single screen
Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)

Application Usage

Hotels, Retail, Cinema, Church, University, College

MODEL	MS2800N
CPU	Intel® X-Series Core™ i9, 10 cores
RAM	16GB
STORAGE	128GB SSD
OPERATION SYSTEM	Microsoft® Windows® 10 IoT Enterprise
DISPLAY RESOLUTION	4096 x 2160 @60Hz (x16)
NETWORK	RJ45 x 1 - 10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11a/b/g/n (optional)
I/O PORT	Mini DisplayPort x16/ USB 2.0 x2/ USB 3.0 x10/ 3.5mm Audio Jack x5/ Digital output
ENCLOSURE	Aluminium chasis + Steel
POWER SUPPLY	800W ATX
WEIGHT	36.2 lbs/ 16.42 kg
TEMPERATURE / HUMIDITY	Operation: 0°C – 40°C; Storage: -20°C – 60°C/ 5% – 90% non-condensing
DIMENSION	7.9 x 16.9 x 21 in/ 176 x 430 x 546 mm

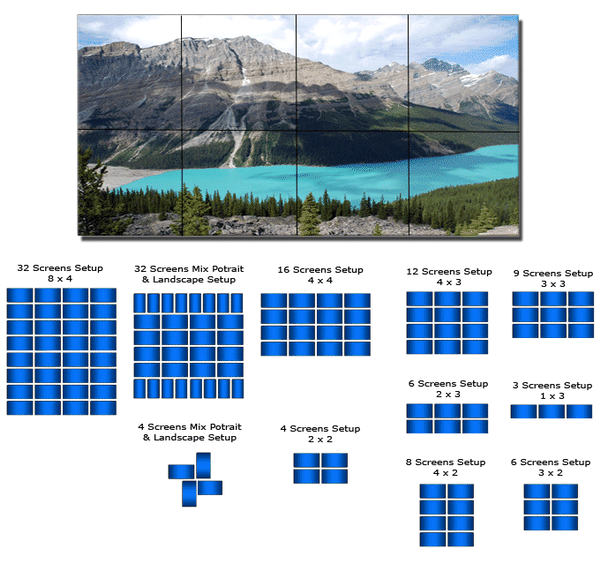

MS2800S - 16 Output Multi-Screens Display

Various combination from 2 screens up to 16 screens on potrait/ landscape stretched across multiple screens or
played on a single screen
