DIGITAL SIGNAGE 2 SCREENS

DIGITAL SIGNAGE & SMART HOME > DIGITAL SIGNAGE

DIGITAL SIGNAGES 2 SCREENS OUTPUT DISPLAY

Multi Screen Digital Signage

MA1352 2-Screens Display

Content Manager

1 Year Standard Warranty

Call or Email for Quote

03-8069 1655/ 03-8069 1755

012-278 5731

sales@3wiredsys.com

for

Consultation,

Technical enquiries,
Recommendation or Demo

MA1352 SPECIFICATION MODEL

DT Research MA1352 Digital Signage

Intel Digital Signage

Intel Celeron Quad-Core CPU

No subscription fees

Web Base Easy Designer

MA1352 2-Screen Display Signage Appliance features the powerful and energy-efficient Intel Celeron Quad-Core processor in a fanless, robust package, providing dual Full-HD video playback yet reduced power consumption. Combined with the industry-leading WebDT Content Manager and Menu Board Editor software, one MA1352 is capable of driving content on up to 2 screens while communicating with the server for updates for digital menu board and advertising applications.

Intel Celeron Quad-Core CPU
Microsoft Windows Embedded Standard 7
Support Multi-zone content
Intuitive, web-based remote content and device administration
Compact easy installation and mounting
Optional wireless networking
Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)
Real-time or scheduled content playback
Automatic content download recovery

Application Usage

Hotels, Retail, Cinema, Church, University, College

MODEL	MA1352
CPU	Intel® Celeron® Quad Core
RAM	4GB - 8GB
STORAGE	64GB - 256GB Flash
OPERATION SYSTEM	Windows 7 Embedded
DISPLAY RESOLUTION	Full-HD 1920x 1080 @ 60Hz (x 2)
NETWORK	RJ45 x 1 - 10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11a/b/g/n (optional)

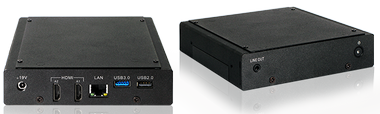

OUTPUT PORT	HDMI x 2/ USB 2.0 x 1/ USB 3.0 x 1
ENCLOSURE	Aluminium chasis/ Fanless/ VESA mounting bracket included
POWER SUPPLY	Input: 100 – 240V AC; Output: 19V DC
WEIGHT	0.88 lbs/ 400 g
TEMPERATURE / HUMIDITY	Operation: 0°C – 40°C; Storage: -20°C – 60°C/ 0% – 90% non-condensing
DIMENSION	1.3 x 5.5 x 6 in/ 33 x 139 x 153 mm

MA1352 - 2 Output Screens Display Various combination from 1 screen up to 2 screens on potrait/ landscape stretched content across multiple screens or play different individual content on a single screen
MODEL	OS	STORAGE	RAM
MA1352E-37B	Windows Embedded 7	64GB Flash	4GB
MA1352E-38B		128GB Flash
MA1352E-39B		256GB Flash
MA1352E-47B		64GB Flash	8GB
MA1352E-48B		128GB Flash
MA1352E-49B		256GB Flash
