HDMI HDBaseT Over LAN REPEATER with Serial

DISTRIBUTION AMPLIFIER

Call for more information 03-8069 1655/ 03-8069 1755/ 012-278 5731 sales@3wiredsys.com

HDMI HDBaseT REPEATER EXTENDER with SERIAL & IR

PRODUCT FEATURES DIAGRAM DATA SHEET

HDMI HDBaseT Repeater Extender with ETHERNET 2-Input Port Switch / 1-Local Out/ 1-Remote Out/ 3-Ethernet Port 4-Input Port Switch / 1-Local Out/ 1-Remote Out/ 3-Ethernet Port EVBMN-1292X (Repeater) RM 2,486.00 support up to 100m EVBMN-1492X (Repeater) RM 2,730.00 support up to 70m Supported Transmitter Model EVBM-107L (70m) EVBM-110L (100m) EVBMN-110L (100m/ Ethernet) EVBM-S1074L (70m/ Switch Splitter) EVBM-S1474L (70m/ Switch Splitter) EVBM-S1094L (100m/ Switch Splitter) EVBM-S1494L (100m/ Switch Splitter) Supported Receiver Model EVBM-107R (70m) EVBM-110R (70m) EVBMN-110R (100m/ Ethernet)		REPEATER
	MODEL	EVBMN-1292X	EVBMN-1492X
	INPUT PORT	1 x HDMI/ 1 x RJ45	3 x HDMI/ 1 x RJ45
	ETHERNET PORT	3 x RJ45 (10/100 Mbps)
	OUTPUT PORT	1 x RJ45 (Remote)/ 1 x HDMI (Local)
	IR EXTENSION	1 x Transceiver / 1 x Receiver
	VIDEO RESOLUTION (max)	UHD 3840 x 2160
	SERIAL (Linking Setting)	4 positions
	DISTANCE SUPPORT	100m
	EDID Configuration Switch	Slide Switch: Audio/ Video/ Inventory
	EDID Copy Button	1 x Local + 1 x Remote
	EGO Setting	Matrix: 2-Bus Switch-Splitter: Prority/ Auto-Sensing/ Switch
	SERIAL PORT EXTENSION	DB9-F (38.4kps)
	POWER SUPPLY	DC 12V single power supply for Repeater only No power supply needed for RX or TX
	ENCLOSURE	Metal
	H x W x D (mm)	34 x 190 x 125
	WEIGHT (g)	1020~1070
	Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.

4K2K HDMI Output Repeater with IR/ Serial/ Ethernet Extending for CATx Extender

REPEATER

EVBMN-1292X (2-Input Port Switch)

EVBMN-1492X (4-Input Port Switch)

Deliver HDMI signal to multimedia displays over CAT5e/6 cable up to 100m
100BaseT Ehternet Pass-Thru enable simultaneously distribute HDMI and Ethernet streaming video from each source to each display
Advanced device to allow cascaded for maximum extension
Source control 1) Push button 2) IR Remote Control
Duplicate or even add a second video signal to achieve multicast distribution that sends multiple sources to multiple displays in seperate location
RS232 Slide switch for configuration two-way communication between the devices, the transmitter, or the receiver
Bi-directional IR & Serial (depending on model)
Can be connected to the transmitter or receiver through LAN
HDTV, 3D HDTV compatible; HDCP compliant and Blu-ray ready
Support resolution up to UHD (3840 x 2160), Full HD 1080p, 2048 x 1152, Deep Color and HD Audio format
Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application

Exclusive EDID Functions

Multi-functions for EDID setting, like EDID Copy and EDID Pre-setting, ensuring accurate output display
Enable seperately lean Audio and Video EDID for multimedia/ Home Theater system integration
Read and store the EDID from the connecting display to the video extension

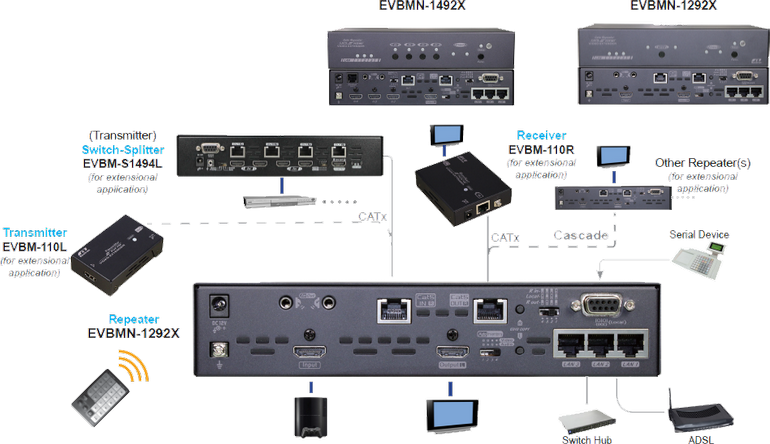

EVBMN-1292X/ 1492X
