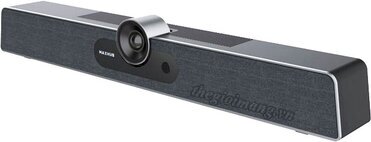

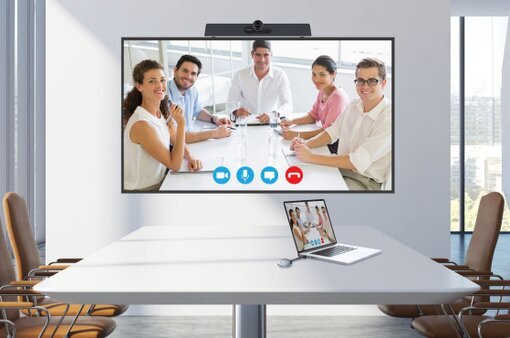

MAXHUB VIDEO CONFERENCE SOLUTION
 |  |  |

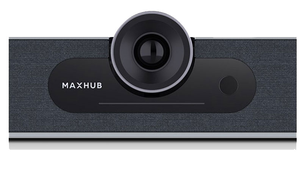

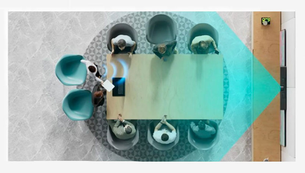

Capture Every Detail Equipped with a 4K camera and 120 field of view, it captures the whole room with sharp images | Auto Framing Automatically offers the best view via tracking of the number and positions of participants | Speaker Tracking Dynamically follows the active speaker in real-time, elevating engagement with a lifelike meeting experience |
 |  |  |

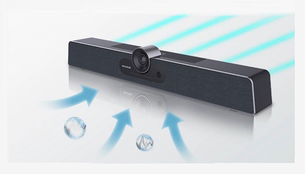

Attention On You, Wherever You Are Enhances your communication with 6 intelligent beam-forming microphones, providing full-duplex voice coverage in huddle and small spaces | AI Noise Reduction Filters out noise to improve concentration and enhance collaboration experiences, eliminating background noises, no more tapping, typing, or door closing | Immersive Audio Experience From intimate chats to group huddles of up to 8, our studio quality Hi-Fi speaker ensures crystal-clear sound for all. With 8W+3W power and a specialized tweeter and woofer design, every voice is head, every corner filled with immersive sound |
 | ||||
 | ||||
Model | MaxHub UC S15 RM 4,600.00 | MaxHub UC S07 RM 2,600.00 | ||
CAMERA | ||||
Pixel / Zoom | 12 M / 5x Digital Zoom | |||
Field of View | 120°(D), 110°(H), 73°(V) | |||
Video Output (MJPG/ H264) | MPEG/ H264 - 3840 x 2160@30fps (with USB 3.0 cable) YUY2 - 1080p@30fps, 720@30fps | |||
Focus Mode | Fixed Focus / Camera Tilt ±15° | |||
Features | Auto Framing, Speaker Tracking, Intelligent Focus | |||
Sensor | 1/2.3-inch 12MP Sony Sensor | |||
AUDIO | ||||
| Microphone | 6 MEMS Microphone/ 8m Voice Pickup Range | |||
Speaker Output Power | 8W+3W Build-in speaker | |||
| Speaker Volume | 83 dB SPL@1m | |||
| Features | Noise Reduction, Echo Cancellation, Anti-Reverberation, Built-in AGC Algorithm | |||
CONNECTIVITY | ||||
| Interface | 1x HDMI output 1x USB-A 3.0, 1x USB-A 2.0 Input host 1x USB-C 3.0 Device connection 1x RJ45 Ethernet POE Wi-Fi Wireless Network connection Cloud device management (MaxHub Pivot) Build-in MaxHub OS | 1x USB-C 3.0 Input host 1x Audio Out 1x RJ45 POE Power Supply Only | ||
| Optional Connectors | WT13M Wireless Dongle (seamless wireless presenter)  | |||
Datasheet |  UC S15 | UC S07 | ||
MAXHUB PTZ UC P30 CAMERA
Model | MaxHub UC P30 RM 6,400.00 | |||
CAMERA | ||||
Pixel / Zoom | Optical 12x, Digital Zoom 3x | |||
Field of View | DFOV 90°/ HFOV 80°/ VFOV 49.2° | |||
Video Output (MJPG/ H264) | USB 3.0 cable: MPEG/ H.264 - 3840 x 2160@30fps, YUV - 1080p@30fps USB 2.0 cable: MPEG/ H.264 - 3840 x 2160@30fps HDMI cable: MPEG/ H.264 - 3840 x 2160@30fps IP First Stream: MPEG/ H.264 - 3840 x 2160@30fps IP Second Stream: MPEG/ H.264 - 72p@30fps | |||
Focus Mode | Lens Focus 4.8mm-57.8mm / Lens F# 1.8-3.6 | |||
Motorized Pan & Tilt | Pan ±170°, Tilt ±90° | |||
Features | Auto Framing, Speaker Tracking, Intelligent Focus | |||
Sensor | Sony 4K, 8.42M Pixel | |||
| Preset Number | 10 via IR Remote, 128 via RS232 | |||
| Image Flip & Image Mirror | Yes | |||
Panaromic Camera | 8MP, Sony Sensor/ 120° DFOV/ Manual Tilt ±10°/ Electric Privacy Cover/ Camera LED Indicator | |||
FEATURES | ||||
| AI | Auto Framing, Speaker Tracking, Presenter Tracking | |||
CONNECTIVITY | ||||
| Interface | 1x HDMI 1.4 output 1x USB-A 2.0 Input host 1x USB-C 3.0 Device connection 1x Mic in (3.5mm) 1x RJ45 IP Stream POE+ 1x RS232 (VISCA/Pelco-D/Pelco-P Protocol) | |||
Datasheet | UC P30 | |||
