VGA MATRIX SWITCHER

Call Online Special price 03-8069 1655/ 03-8069 1755/ 012-307 0594/ 012-305 2428 sales@3wiredsys.com

VGA SWITCHER

VGA Switcher

1 Year Standard Warranty

Call or Email us for consultation, technical queries, recommendation or demo

2in- 1out VGA SWITCHER VSA-ED201 RM 256.00 VSA-ED221 RM 402.00 Rotary Selection for Optimum Clarity Input: VGA x 2 Output: VGA Features: EDID Copy, Auto signal detact features, Priority port selection	REX-VGA-SW401A/ VSVA-401 4in-1out VGA SWITCHER with AUDIO REX-VGA-SW401A/ VSVA-401 RM 475.00 Input: VGA/ Audio X 4 Output: VGA/ Audio Control: IR Remote Control
REX-VGA-SW401AS/ VSVA-S401 4 Port out 1in VGA SWITCHER with AUDIO/ SERIAL CONTROL REX-VGA-SW401AS/ VSVA-S401 RM 756.00 Input: VGA/ Audio x 4 Output: VGA/ Audio Control: Serial Port, Remote Control	REX-VGA-SW801AS / VSVA-ED801 8 Port out 1in VGA SWITCHER with AUDIO/ SERIAL CONTROL REX-VGA-SW801AS / VSVA-ED801 RM 1,133.00 Auto-sensing function Input: VGA/ Audio x 8 Output: VGA/ Audio Control: Serial Port, IR Remote Control

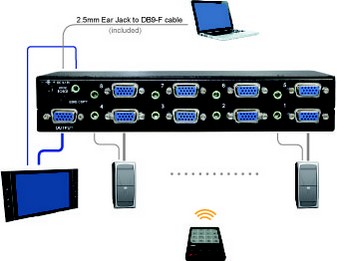

Video Switch is a simple and stable solution, allowing users quickly and easily sharing a varied type of interfaces (VGA / DVI / HDMI and DisplayPort), display devices (HDTV, Blu-ray player, HD-DVD, Xbox, Wii, PS3, Satellite receiver…etc.) from your device inputs to one output device (monitor, projector, or TV). You can select the desired input source via the remote control within the range of 5 meters or push button located on the switch. It totally removes the need to plug & unplug Video sources, making the user’s A/V equipments more convenient, more affordable and more efficient. Furthermore, the built-in serial interface allows users controlling the Video Switch through a PC, serial controller devices or home theater system integrating the whole A/V environment.

Select 1 Video (+ Audio) from 2 / 4 / 8 different Video (+ Audio) sources
Front panel buttons for easy switching
LED shows active status and makes operation user-friendly
Support video resolution up to UXGA (1600 x 1200) / Full HD (1920 x 1080) / WUXGA (1920 x 1200)
Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA system

EDID Functions

EDID functions effect simultaneously of all video sources
EDID Copy function makes the best video presentation
Read and store the EDID from the connecting display to the video extension
Provide a default EDID, if a display’s EDID is not available
Alternatively perform the default or the copied EDID for the connected display device
Emulating EDID information ensures the optimum video performance

EGO Functions for VSA-ED801 model

User-friendly port switching via button pressing or priority setting

Priority: System will automatically select Source-1 to display

(Priority: Source-1 > Source-2 > ……)

Auto-sensing: System will automatically select the latest video source to display

VGA MATRIX SWITCHER

VGA Matrix Switcher

XVA-404/ XVA-408

1 Year Standard Warranty

Call or Email us for consultation, technical queries, recommendation or demo

PRODUCT FEATURES DIAGRAM

XVA-404

4 Port In/Out

VGA MATRIX SWITCHER with AUDIO/ SERIAL

XVA-404 RM 1,462.00

Input: VGA/ Audio x 4
Output: VGA/ Audio x 4
Control: Serial Port, IR Remote Control

XVA-408

4 Port In-8 Port Out

VGA MATRIX SWITCHER with AUDIO/ SERIAL

XVA-408 RM 2,682.00

Input: VGA/ Audio x 4
Output: VGA/ Audio x 8
Control: Serial Port, IR Remote Control

Rex’s Video Matrix Switch XVA series can route 2 / 4 VGA and audio sources to 4 / 8 VGA displays (projectors, monitors, and so on) and speakers. The Video Matrix Switch acts as a video/ audio signal management system in presentation applications, which simplifies the process of signal routing. In addition, the user can remotely control the unit by using the remote controller within the range of 5~10 meters, and fully enjoy the control power without any cable connection.

Signals from a range of input sources can be distributed to various output devices, in essence of creating a "matrix" pattern of interconnection possibilities. A single computer video output AND audio output can be routed to one or more monitors and speakers. Each image will be as crisp and clear as if directly connected to the original source. Each video and audio output is buffered corresponding to each input, which ensures signal integrity throughout the system.

Route 4 different VGA and audio sources to 4/ 8 different displays and speakers
Support 1. Front panel button control

2. IR remote control
3. Serial control (depends on models)

Remotely control up to 5 meters by using the remote controller
Switch both video and audio directly
Turn ON/OFF each video/ audio output port individually
Distortion-free for multiple concurrent outputs
Activate Auto Scan by front panel push buttons
Selectable Scan Time interval
Buzzer beeps for switching confirmation
Exclusive remote controller with embedded functions to control up to 16 units
Auto scan is available
Each input can be independently connected to any one or all outputs
Support video bandwidth up to 300 MHz
Support the video resolution of 1920 x 1440
System settings are automatically retained, and reset to the previous settings after a power failure
Rack mountable

VGA Matrix Switcher

XVA-G0804/ XVA-G0808/ XVA-G1608

1 Year Standard Warranty

Call or Email us for consultation, technical queries, recommendation or demo

PRODUCT FEATURES DIAGRAM

XVA-G0804

8 x 4 VGA MATRIX SWITCHER
with AUDIO/ SERIAL

XVA-G0804 RM 3,351.00

Input: VGA/ Audio x 8
Output: VGA/ Audio x 4
Control: Serial Port, IR Remote Control GUI Interface
Rack Mount Accesories

XVA-G0808

8 x 8 VGA MATRIX SWITCHER
with AUDIO/ SERIAL

XVA-G0808 RM 4,874.00

Input: VGA/ Audio x 8
Output: VGA/ Audio x 8
Control: Serial Port, IR Remote Control GUI Interface
Rack Mount Accesories

XVA-G1608

16 x 8 VGA MATRIX SWITCHER
with AUDIO/ SERIAL

XVA-G1608 RM 7,554.00

Input: VGA/ Audio x 16
Output: VGA/ Audio x 8
Control: Serial Port, IR Remote Control GUI Interface
Rack Mount Accesories

Video Matrix Switch MX series can route multiple VGA and audio sources to multiple VGA displays (projectors, monitors, and so on) and speakers. The Video Matrix Switch acts as a video/ audio signal management system in presentation applications, which simplifies the process of signal routing. In addition, the Graphical User Interface (GUI) feature provides users easier and more friendly operations and the user can remotely control the unit by using the remote controller within the range of 5~10 meters, and fully enjoy the control power without any cable connection.

Signals from a range of input sources can be distributed to various output devices, in essence of creating a "matrix" pattern of interconnection possibilities. A single computer video output AND audio output can be routed to one or more monitors and speakers. Each image will be as crisp and clear as if directly connected to the original source. Each video and audio output is buffered corresponding to each input, which ensures signal integrity throughout the system.

● Powerful weekly schedule management

● Route 16 different VGA signals and audio sources to 8 different VGA monitors and speakers

● Support 1. Front panel button control

2. IR remote control

3. Serial control

● Activate auto scan by front panel buttons pressing

● Graphical User Interface (GUI) for easy and friendly operations

● Switch both video and audio directly

● Support to turn ON/OFF the video and audio of each individual output port

● Adjustable volume for each audio port

● Selectable Scan Time interval

● Buzzer sound for switching confirmation

● Support video cascading to increase the capacity

● Each output provides one video signal and one audio signal

● Each input can be independently connected to any or all outputs

● Support the video resolution of Full HD (1920 x 1080) / WUXGA (1920 x 1200) / 1920 x 1440

● Compatible with most of the popular screen resolution to 1080/60p, 1080/60i, 1080/24p, 720/60p, 480/60i...

● 1.5U-height form factor saves rack spaces

● Rack mountable
